Digitally Steerable Line Array Loudspeaker Model EA15

The Audfly Column Line Array Speaker EA15 boasts the remarkable capability to evenly distribute sound throughout every corner of a room while maintaining consistent sound pressure levels. This ensures that every listener experiences the same high-quality audio, regardless of their position within the space.
Primary Application Scenarios:Suitable for indoor areas ranging from 40 to 80 square meters, such as classrooms, conference rooms, yoga rooms, etc.


Get a Quote
Digitally Steerable Line Array Loudspeaker Model EA15

Product Model SA-2003A-EA15 SA-2003A-EA18
Sound Pressure Level 99±3dB@1m/1kHz 105±3dB@1m/1kHz
Input Sensitivity 0.5Vrms 0.5Vrms
Effective Frequency Range 140Hz-15kHz 120Hz-20kHz
Input Voltage AC100~240V AC100~240V
Rated Power ≤60W ≤150W
Operating Temperature -10℃-45℃ -10℃-45℃
Operating Humidity 0-95% 0-95%
Dimensions 780*130*88mm 1146*130*88mm
Input Interface Φ3.5mm jack Φ3.5mm jack
Output Interface Φ3.5mm jack Φ3.5mm jack
Bluetooth Supported Supported
Wireless Microphone Supported Supported
Wireless Microphone Type Standard: Headset
Optional: Handheld
Standard: Handheld
Optional: Headset
Installation Method Wall-mounted Wall-mounted

Functions of Line Array speaker System

  • Designed For a Uniform Sound Field: evenly distribute sound throughout every corner of a room while maintaining consistent sound pressure levels.

  • Engineered To Excel In Vocal Intelligibility: to create a precise vertical sound beam that covers the entire audience area, while reducing disruptive echoes that may compromise clarity.

  • Synchronized With Customizable Coverage Control App: Audfly EA series product can be paired with tuning app, allowing users to fine-tune sound projection angles, enhance vocal clarity, and suppress feedback.

  • All-In-One Design: This device consolidates wireless microphone, Bluetooth, amplifier, and other functionalities including anti-reverberation system,Howling Suppression system into a single unit, providing seamless usability upon plugging in.

Audfly Column Array Speaker Application Scenarios

  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8

Line Array speaker System EA15 Product Composition

Column Line Array Loudspeaker
pre
Headset Mic or Handheld Mic
after



Audfly Array Loudspeaker Model EA15 Display Video

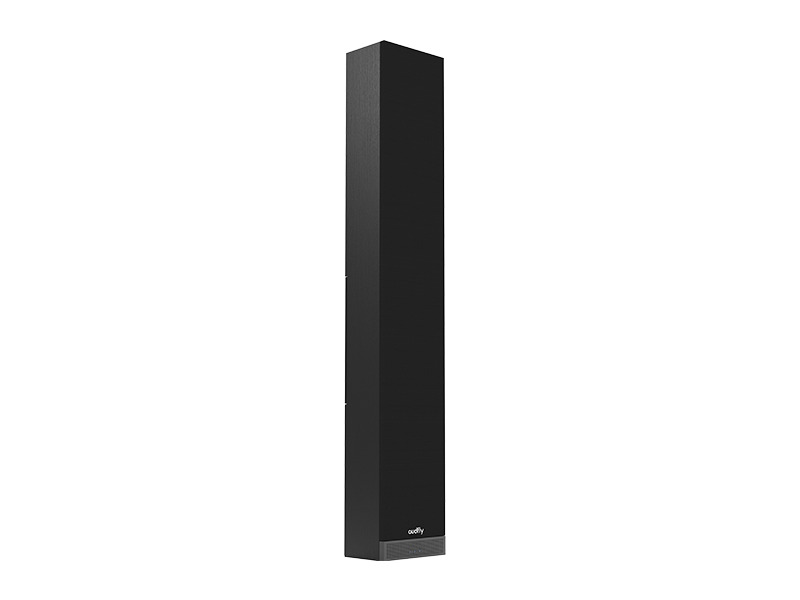

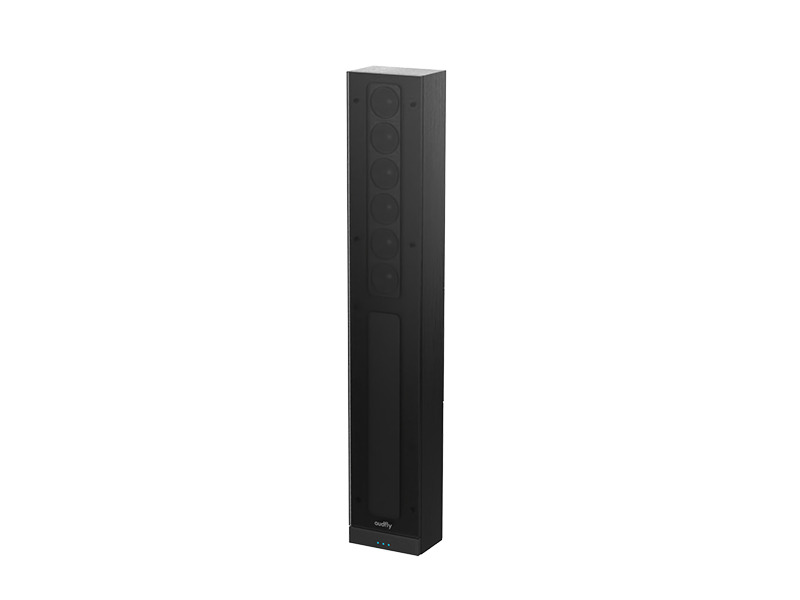

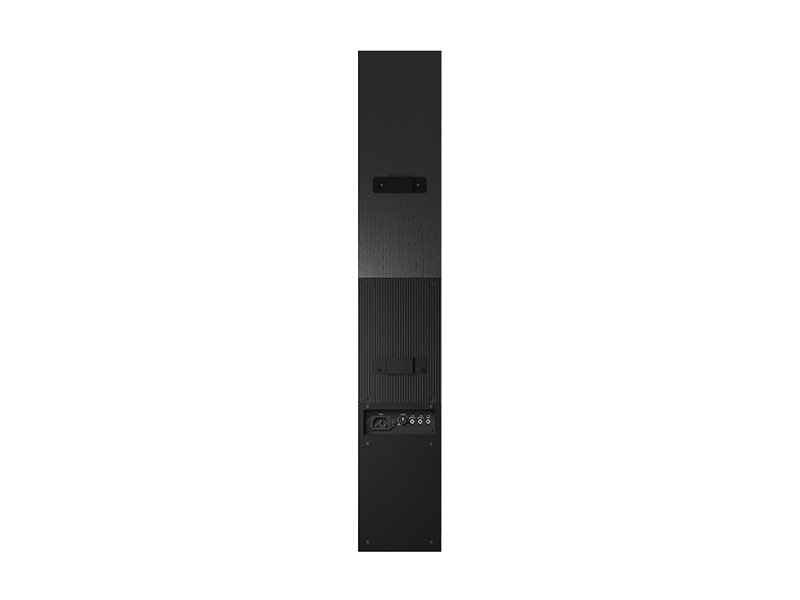

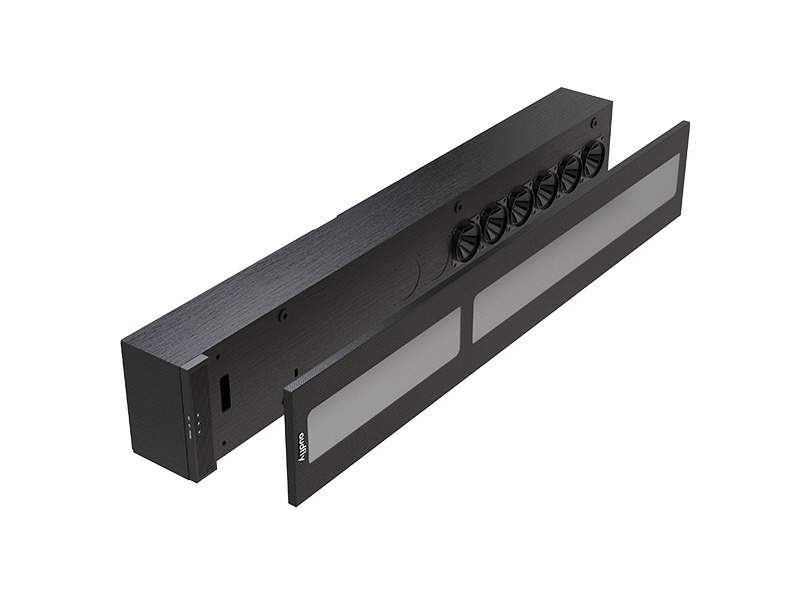

Audfly Model EA15 Multi-angle Showcase
