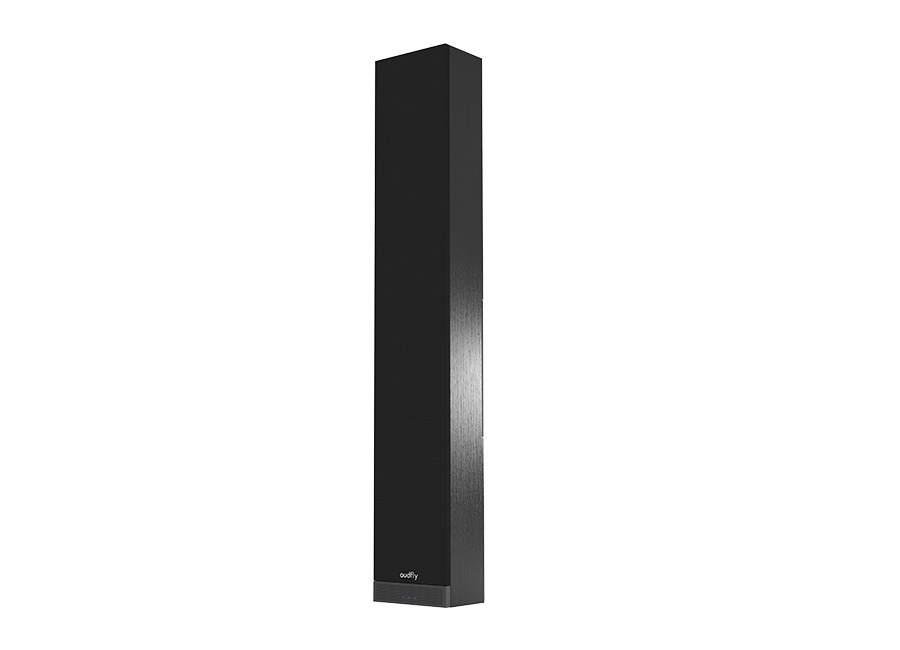

Digitally Steerable Line Array Loudspeaker System
Introducing the Audfly Line Array Speaker EA series, a groundbreaking solution designed to tackle acoustic challenges with precision and elegance. This powered beam-steering array loudspeaker system creates a uniform sound field, ensuring exceptional sound quality and crystal-clear vocal reproduction. With customizable coverage control and high speech intelligibility, it overcomes acoustic obstacles with unparalleled precision. Plus, its all-in-one design and plug-and-play functionality make setup effortless.
Experience unparalleled audio performance with the Audfly Line Array Loudspeaker EA series.
Buy Array Loudspeaker System
home
/
Array Loudspeaker System

Advantages of Column Array speaker System



Product Model SA-2003A-EA15 SA-2003A-EA18
Sound Pressure Level 99±3dB@1m/1kHz 105±3dB@1m/1kHz
Input Sensitivity 0.5Vrms 0.5Vrms
Effective Frequency Range 140Hz-15kHz 120Hz-20kHz
Input Voltage AC100~240V AC100~240V
Rated Power ≤60W ≤150W
Operating Temperature -10℃-45℃ -10℃-45℃
Operating Humidity 0-95% 0-95%
Dimensions 780*130*88mm 1146*130*88mm
Input Interface Φ3.5mm jack Φ3.5mm jack
Output Interface Φ3.5mm jack Φ3.5mm jack
Bluetooth Supported Supported
Wireless Microphone Supported Supported

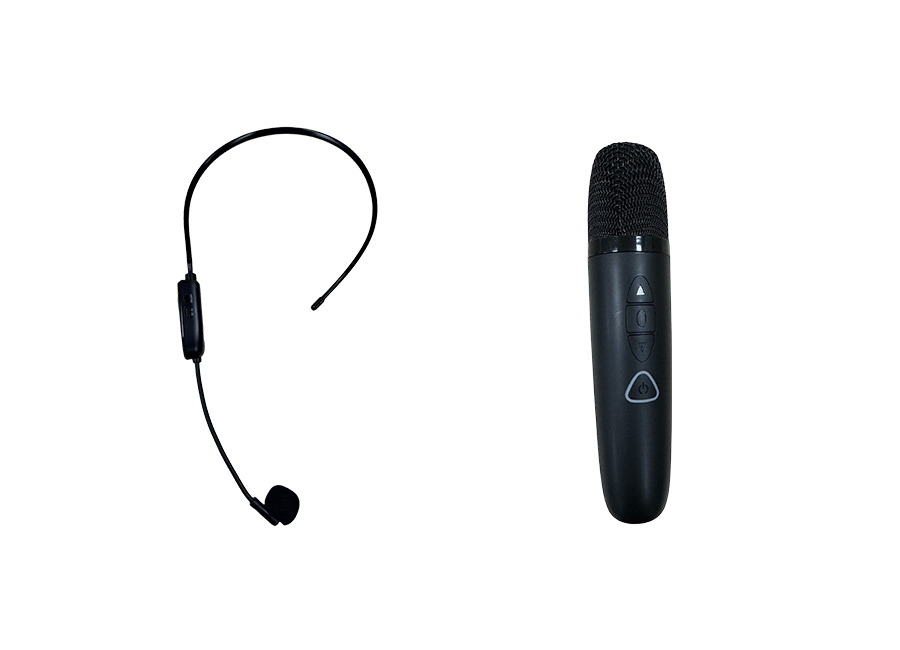

Wireless Microphone Type Standard: Headset
Optional: Handheld
Standard: Handheld
Optional: Headset
Installation Method Wall-mounted Wall-mounted



How Array Loudspeaker Work

Audfly EA series product uses the latest digital steering technologies and algorithms to direct sound where it’s needed. Now, system designers can break free from traditional constraints by using a loudspeaker design that’s flexible and adaptable , by creating a uniform sound field, it ensures exceptional sound quality, crystal-clear vocal reproduction, and customizable coverage control, overcoming acoustic obstacles in any space.

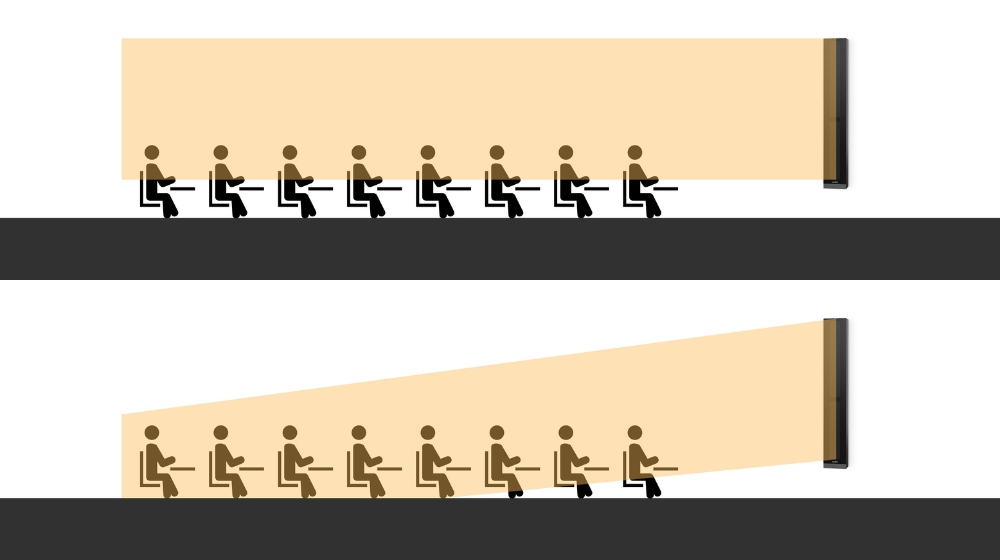

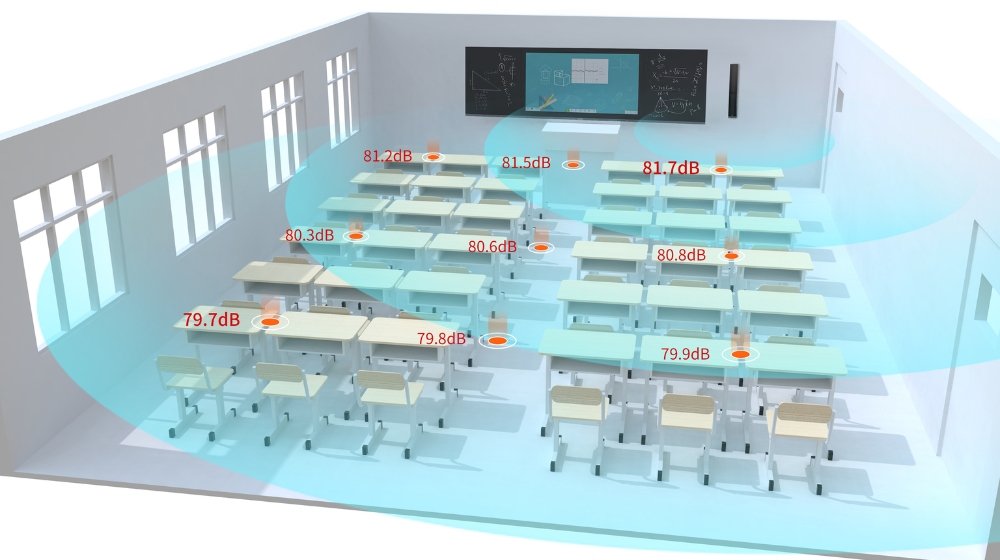

Since conventional speakers are unable to disperse sound evenly, this shortcoming can result in degraded sound quality, muddled sound clarity, and difficulty in effectively addressing acoustic challenges. Audfly EA active beam steering array loudspeaker contains 12 processed and amplified sensors, integrating high-performance DSP and patented algorithms to obtain digital directivity control (DDC), combined with side-lobe suppression and anti-reverberation, amplifed transducers to create a precise vertical sound beam that covers the entire audience area, while reducing disruptive echoes that may compromise clarity, ensuring a consistent sound level, to improve the overall listening experience and improved speech intelligibility.



Array Loudspeaker Work Array Loudspeaker Work

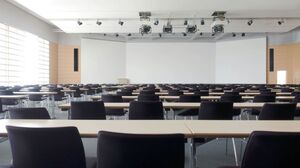

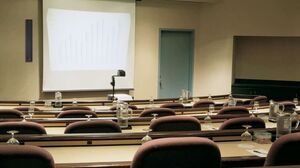

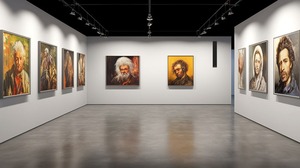

Line Array Speaker System for Various Application Scenarios

  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
