Customized Directional Speaker

Audfly offers customization services to integrate loud ultrasonic speakers into the products you need, and our designers can customize a solution to meet your color, installation and technical needs.

Get a Quote

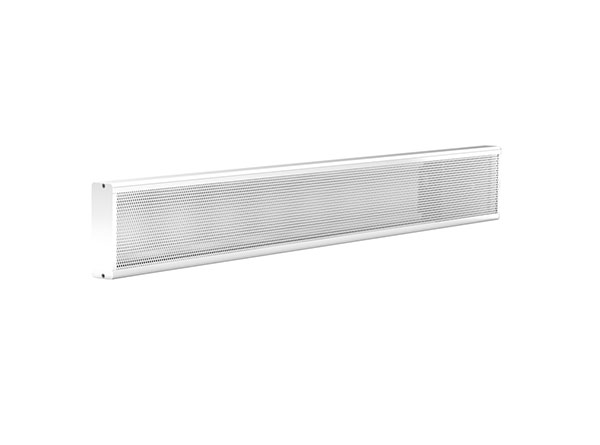

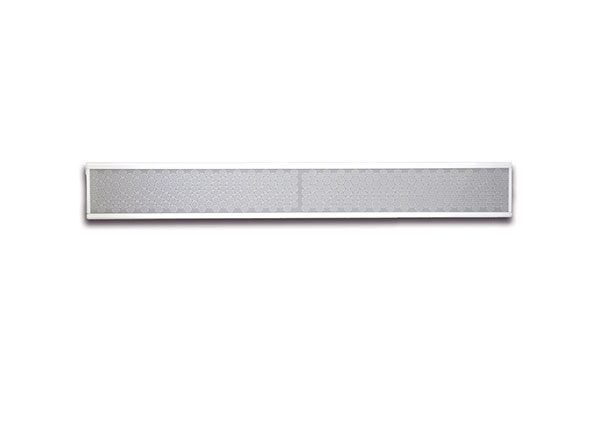

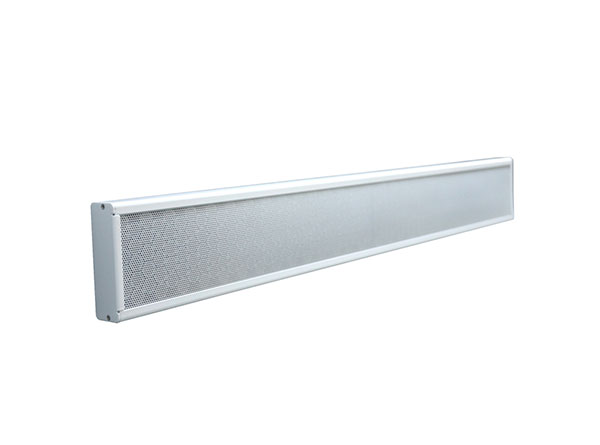

Audfly Customized Directional Speaker

ModelFSC2-L1-F or customized model
Maximum Sound Pressure Level (Volume)88±3dB@1m/2KHz or customized
Directivity Angle<15°(-20dB)
Frequency Range500Hz-13kHz
Rated Power58W
Input Sensitivity1 Vrms
Max Input2.8Vpp
Input Interface3.5mm AUX/RCA
Power Requirements24V DC/3A
Dimension926*118*36mm or tailored
Weight2.45 kg or adjustable
Installed Accessories75*75mm Universal Bracket
Surface Treatment/ColorBlack/White or customized
Status IndicatorPower Signal
Power Adapter(Input) 110-220Vac 50/60H (Output) 24V DC/3A
Matching Power Amplifier Size183*167*45cm or built-in type


Functions of Customized Directional Speaker

  • Flexible Install Type: Ceiling mounted and Wall mounted or based on clients' demand.

  • Applicable to Multiple Scenarios: Almost all the scenarios you need for audio directive transmission usage, such as digital signage, airport or museum, etc.

  • Super Directional Transmission: Create focused audio zones in certain area without increasing the overall ambient noise level.

Customized Directional Speaker Specification

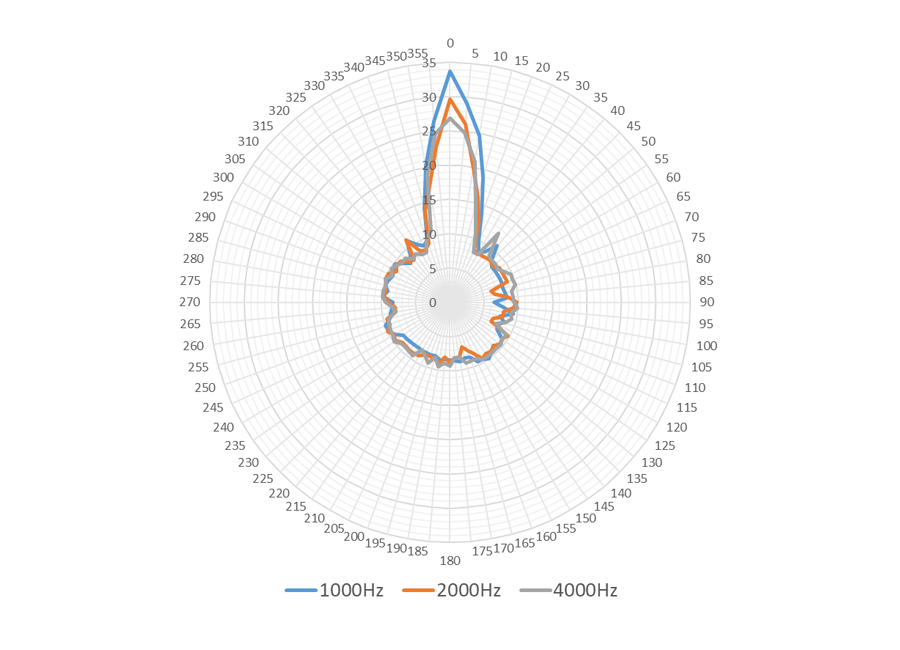

Tailored Directional Audio Polar Pattern

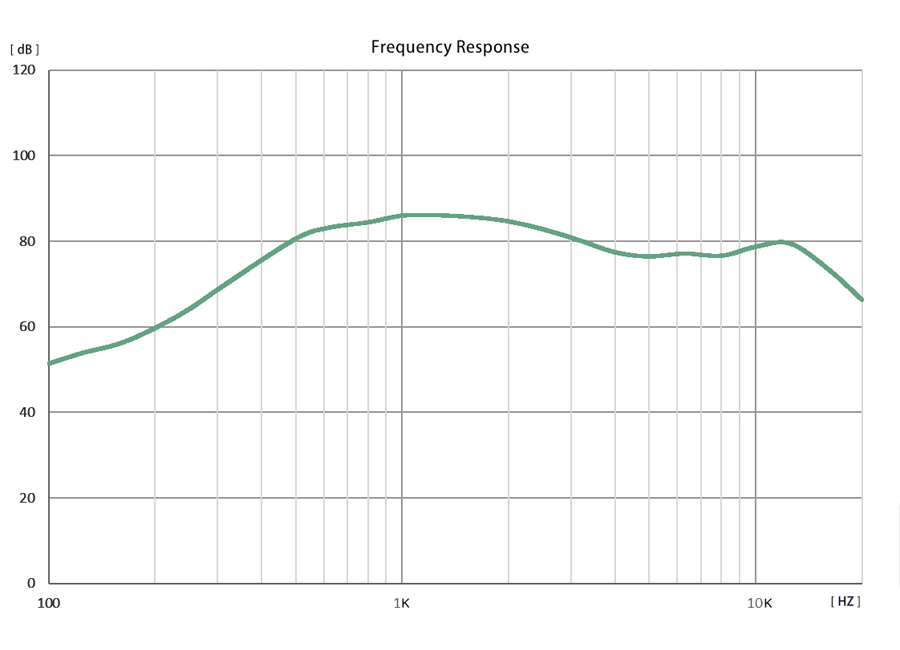

Tailored Directional Audio Frequency Response

Audfly Directional Speaker-Target Sound To Exactly Where You Need It

Audfly ultrasonic directive speaker is the first directional speaker offered in the commercial market in China.

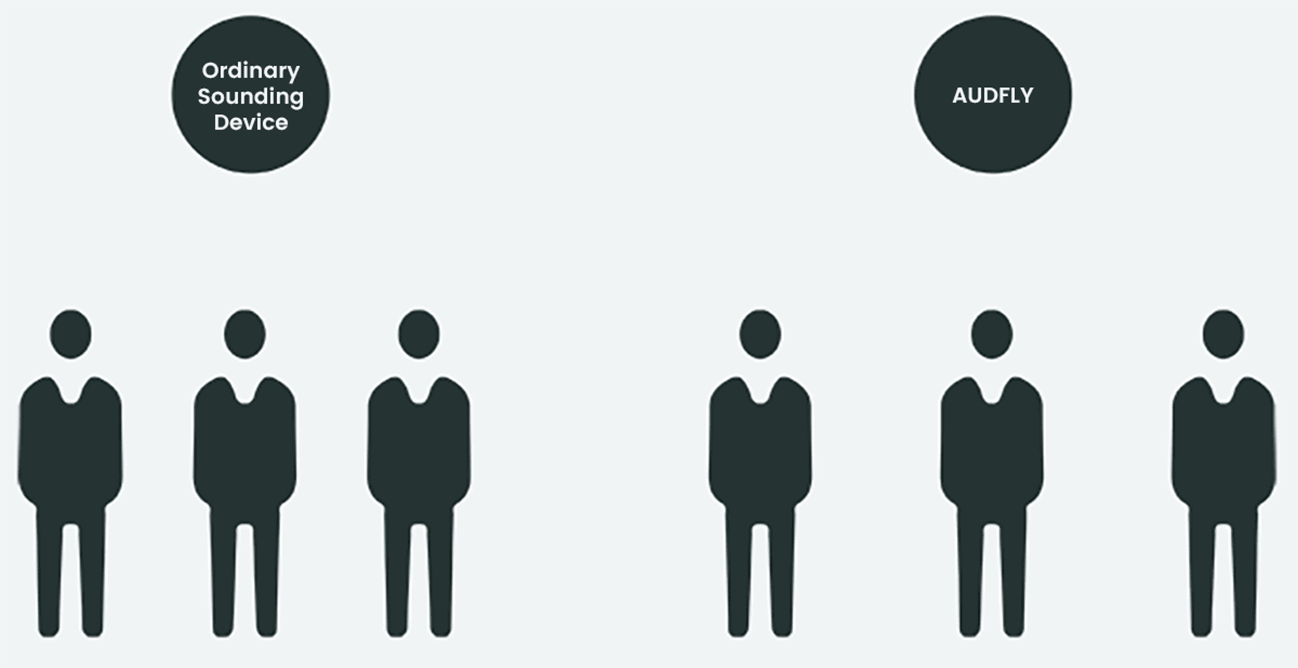

Audfly directional audio is a revolutionary, patent-protected, new audio technology that creates directional sound and provides a precise, independent audio range. Similar to how a flashlight directs a beam of light, the Audfly directional audio technology directs a beam of audio to targeted listeners.

Audfly directional audio speaker has been installed in a wide range of applications all over the world since 2015.

Audfly provides comprehensive sound focusing solutions for a wide variety of indoor and outdoor applications, including museums, digital signs, retail stores, trade shows, and galleries. With the Audfly Directional Audio Speaker, you will Target Sound Exactly Where You Need It.


Audfly Directional Speaker-Target Sound To Exactly Where You Need It

Accessories of Customized Directional Speaker

  • Power Adapter
    Power Adapter
  • Power Cable
    Power Cable
  • Universal Bracket
    Universal Bracket
