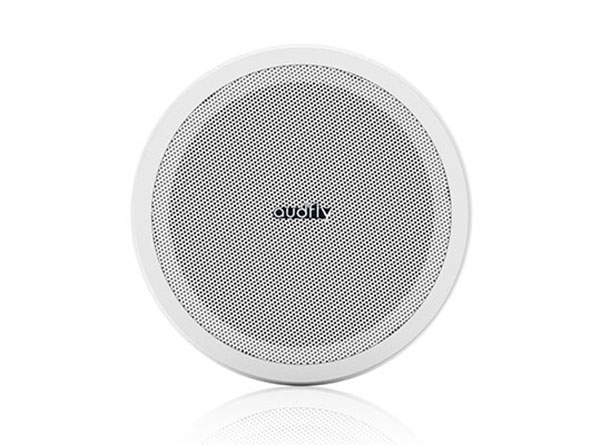

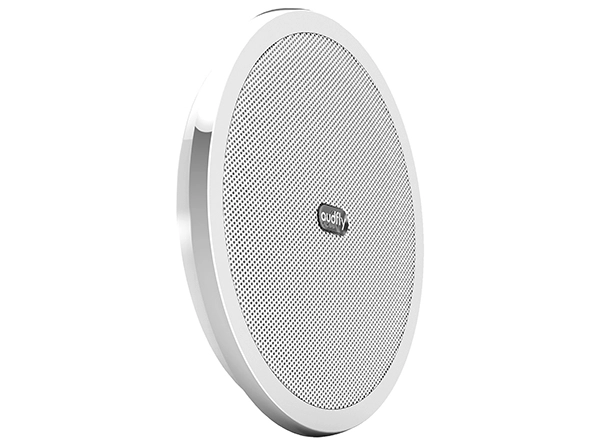

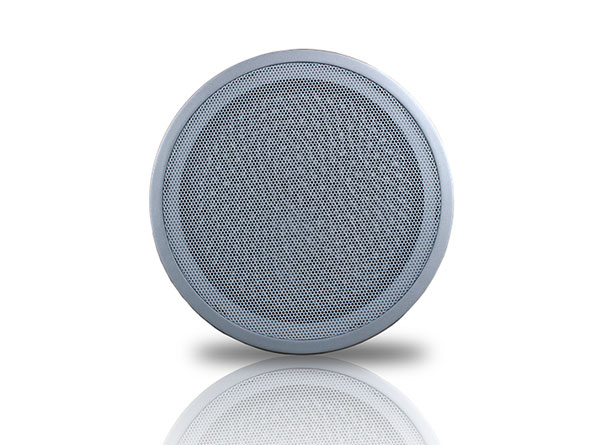

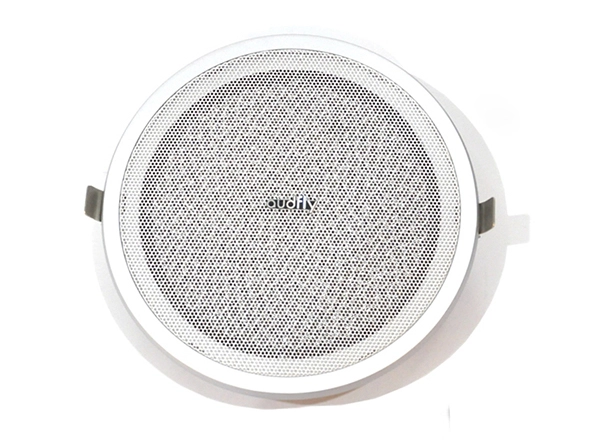

Audfly R1 Ceiling Mounted Sound Beam Speaker

The Audfly Model R1 is a slim, small, and beautiful directional speaker designed to blend neatly with ceilings or walls. It is used to confine sound to a small area in a museum (information point) or a supermarket (advertising point).

Get a Quote

Audfly R1 Ceiling Mounted Directional Speakers

ModelFSC1-R1
Maximum Sound Pressure Level (Volume)75±3dB@1m/2KHz
Directivity Angle<15°(-20dB)
Frequency Range500Hz-6kHz
Rated Power15W
Input Sensitivity1 Vrms
Max Input2.8Vpp
Input Interface3.5mm AUX
Power Requirements24V DC/3A
Dimensionφ145*15mm
Weight625g
Installed Accessories22*50mm Spring Buckle
Surface Treatment/ColorWhite
Matching Power Amplifier Size153*111*46mm
Power Adapter(Input) 110-220Vac 50/60Hz (Output) 24V DC/3A
Audio Line3.5mm Dual-Channel Audio Cable


Functions of Audfly R1 Ceiling Mounted Directional Speakers

  • Flexible Install Type: Wall mounted or ceiling mounted based on clients' demand.

  • Applicable to Multiple Scenarios: Almost all the scenarios you need for audio directive transmission usage, such as museum, gas station or showroom, etc.

  • Super Directional Transmission: Create focused audio zones in certain area without increasing the overall ambient noise level.

Audfly R1 Ceiling Mounted Directional Speakers Specification

R1 Polar Pattern
R1 Frequency Response

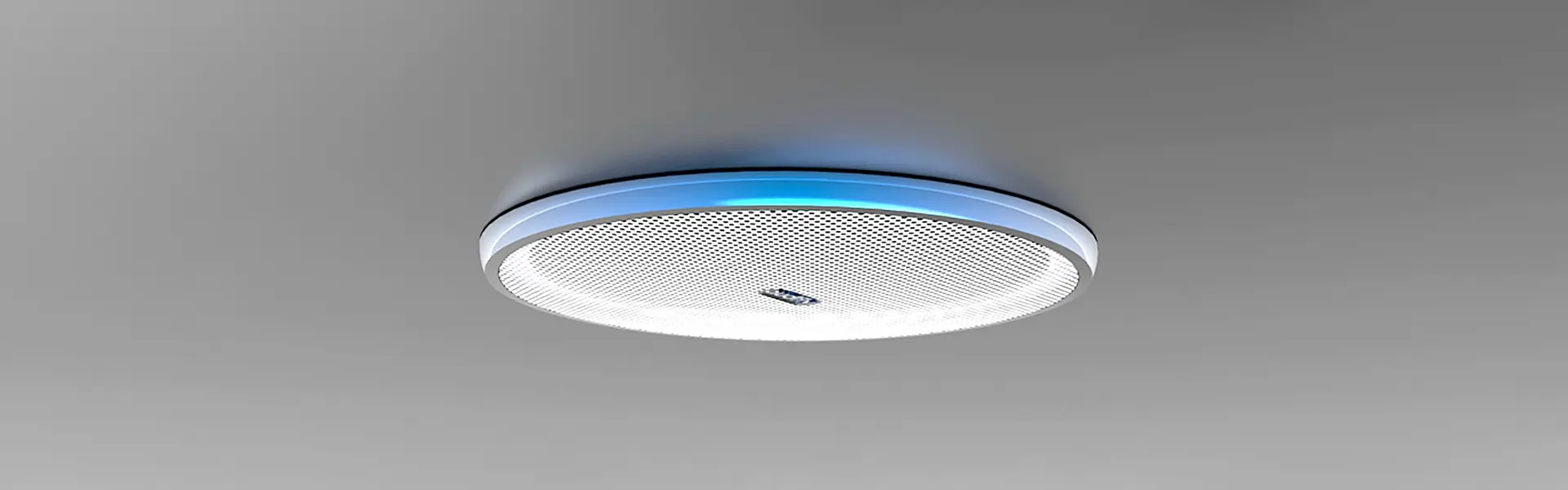

Ceiling Installation Type-Fits Tightly To The Ceiling, Exquisite And Beautiful

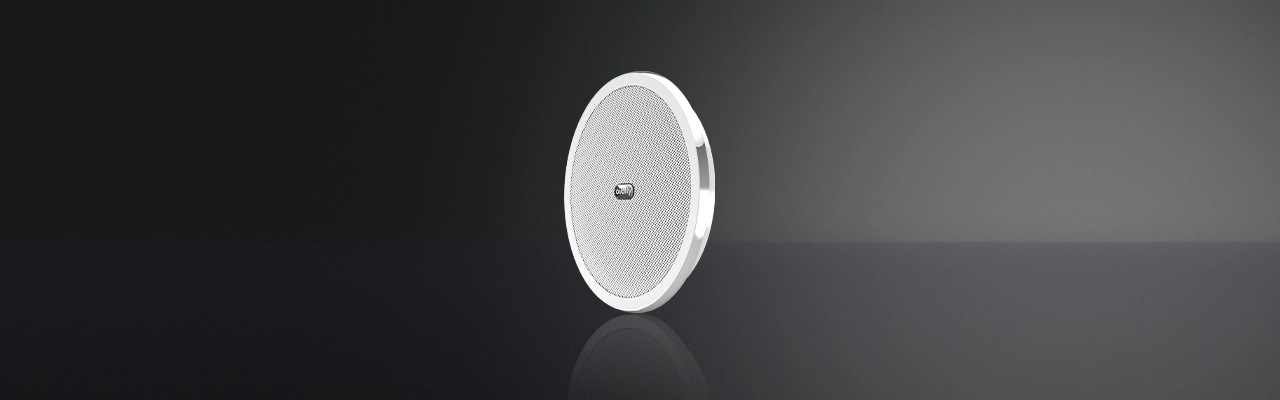

Ceiling Installation Type-Fits Tightly To The Ceiling, Exquisite And Beautiful

Accessories of Audfly R1 Ceiling Mounted Directional Speakers

  • Power Adapter
    Power Adapter
  • Power Cable
    Power Cable
  • RCA Audio Cable
    RCA Audio Cable
