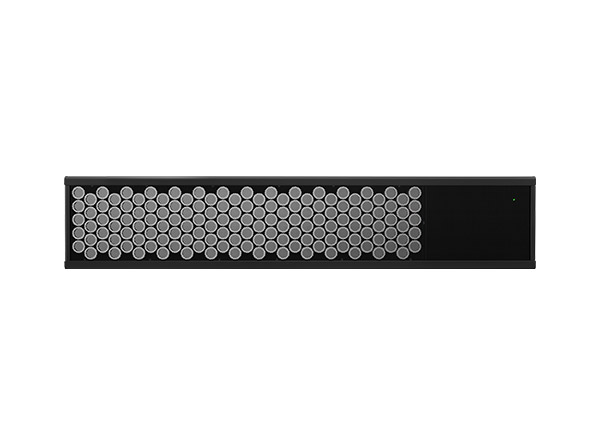

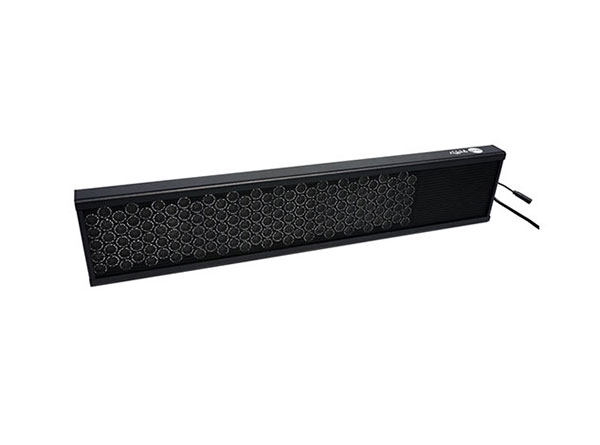

Audfly L1 Acoustic Directional Soundbar

The Model L directional loudspeaker, strip-type design makes it suitable for wall mounting. It has excellent directional sound capabilities and can be used in exhibitions, supermarkets and other open areas.

Get a Quote

Audfly L1 Acoustic Directional Soundbar

ModelFSC2-L1-E
Maximum Sound Pressure Level (Volume)92±3dB@1m/2KHz
Directivity Angle<15°(-20dB)
Frequency Range500Hz-13kHz
Rated Power20W
Input Sensitivity1 Vrms
Max Input2.8Vpp
Input Interface3.5mm AUX
Power Requirements24V DC/3A
Dimension590*118*36mm
Weight1.7 kg
Installed Accessories75*75mm Universal Bracket
Surface Treatment/ColorBlack
Status IndicatorPower Signal
Power Adapter(Input) 110-220Vac 50/60Hz  (Output) 24V DC/3A


Functions of Audfly L1 Acoustic Directional Soundbar

  • Flexible Install Type: Ceiling mounted and Wall mounted or based on clients' demand.

  • Applicable to Multiple Scenarios: Almost all the scenarios you need for audio directive transmission usage, such as exhibition, museum or supermarket, etc.

  • Super Directional Transmission: Create focused audio zones in certain area without increasing the overall ambient noise level.

Audfly L1 Acoustic Directional Soundbar Specification

FSC2-L1 Polar Pattern
L1 Frequency Response
Audfly L1 Acoustic Directional Soundbar Video

Audfly L1 Acoustic Directional Soundbar Video

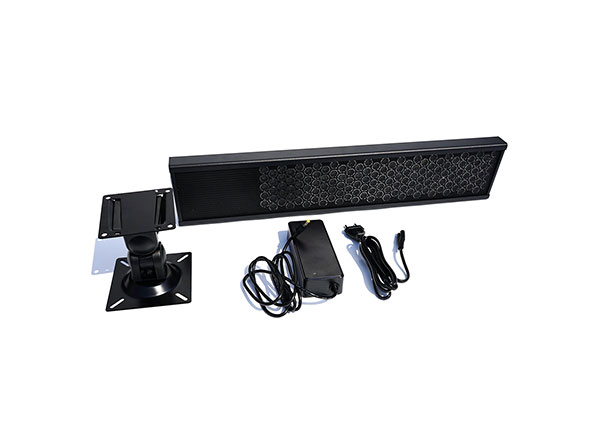

Accessories of Audfly L1 Acoustic Directional Soundbar

  • Power Adapter
    Power Adapter
  • Power Cable
    Power Cable
  • Universal Bracket
    Universal Bracket
