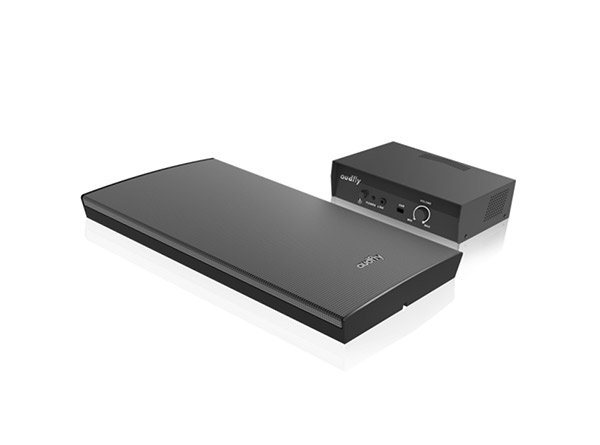

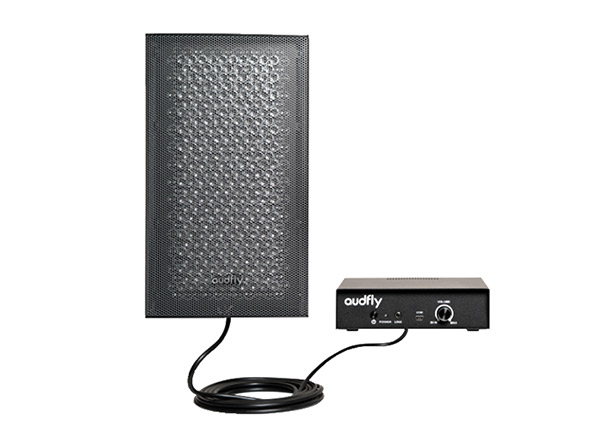

Audfly B1 Directional Ultrasonic Parametric Speaker

This is another product of Audfly directional parametric speaker B type, it also has excellent directional sound effects and is often used in tradeshows, airports, museums, offices, etc.

Multiple mounting options: available for all solutions, including ceiling mount, and wall mount.


Get a Quote

Audfly B1 Directional Ultrasonic Parametric Speaker

ModelFSC5-B1-G
Maximum Sound Pressure Level (Volume)80±3dB@2KHz
Directivity Angle<15°(-20dB)
Frequency Range500Hz-13kHz
Rated Powerabout 15W
Input Sensitivity1 Vrms
Max Input2.8Vpp
Input Interface3.5mm AUX
Power Requirements24V DC/3A
Dimension294*169*29mm
Weight1450g
Installed Accessories75*75mm Universal Bracket
Surface Treatment/ColorGray/Silver Mesh Cover
Matching Power Amplifier Size153*111*46mm
Power Adapter(Input) 110-220Vac 50/60Hz   (Output) 24V DC/3A
Audio Line3.5mm Dual-Channel Audio Cable
USB Function

USB2.0 (Support Maximum 32G)

USB format support FAT, FAT32.

USB Audio Format

Support MP3, WAV.

USB audio will be played first and automatically after connecting.


Functions of Audfly B1 Directional Ultrasonic Parametric Speaker

  • Flexible Install Type: Wall mounted or ceiling mounted based on clients' demand.

  • Applicable to Multiple Scenarios: Almost all the scenarios you need for audio directive transmission usage, such as Tradeshow, museum or bank, etc.

  • Super Directional Transmission: Create focused audio zones in certain area without disturbing anyone around you.

Audfly B1 Directional Ultrasonic Parametric Speaker Specification

B1 Polar Pattern
B1 Frequency Response

Audfly Directional Speaker Model B1 Display Video

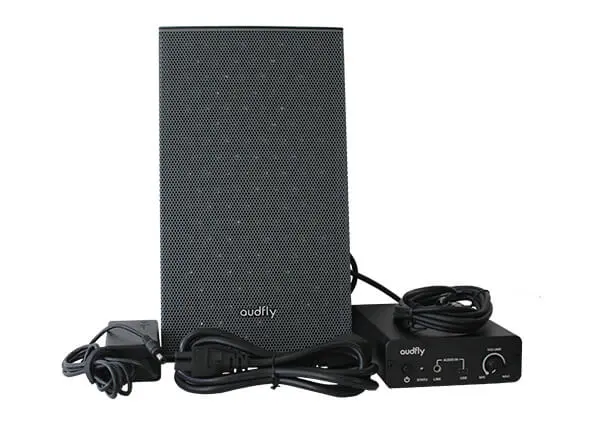

Accessories of Audfly B1 Directional Ultrasonic Parametric Speaker

  • 3.5mm AUX Audio Cable
    3.5mm AUX Audio Cable

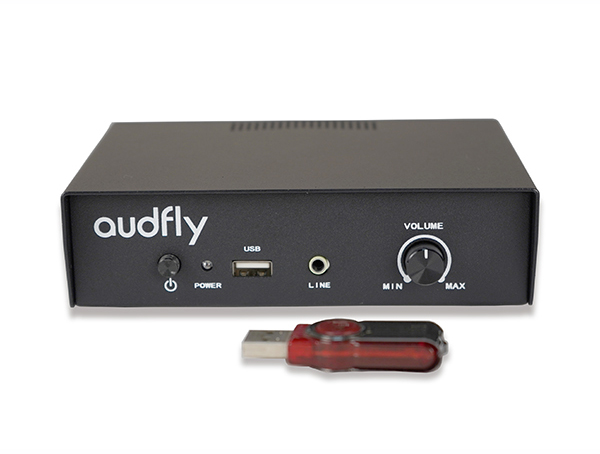

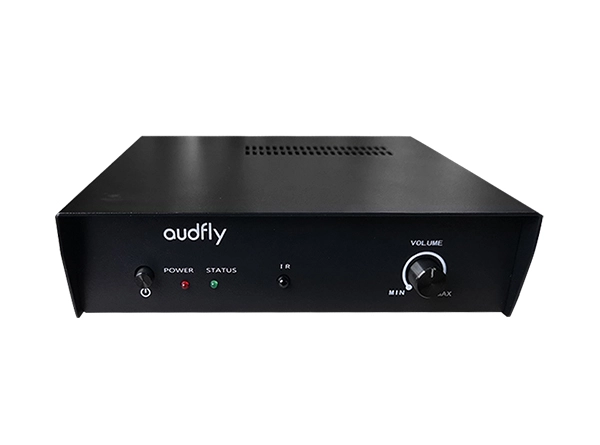

  • Amplifier
    Amplifier
  • Power Adapter
    Power Adapter
  • Power Cable
    Power Cable
  • Universal Bracket
    Universal Bracket
